Salient Features
• Main Frame is made of welded steel plates stress relieved by heat treatment.
• Jaw Stock is high quality steel casting and precision machined to suit the bearing.
• High quality forged steel heat treated eccentric Shaft.
• Double row self aligning roller Bearing and lubricated by grease or oil.
• Fly Wheel of quality cast-iron casting taper bored for easy assembly.
• Manganese steel casting reversible Jaw Plates and Side Plates.
• Special casting Toggle Plates designed for long life and safety of the machine.
• Grease / Oil lubrication system to reduce the wear.
• Hydraulic system for adjusting the discharge opening.
Technical Data
| Model No Name |
Feed Opening (In / mm) |
Feed Size Min - Max (In / mm) |
Discharge Opening (In / mm) |
Crushing Capacity (ton / hr) |
Power (HP) |
Speed (RPM) |

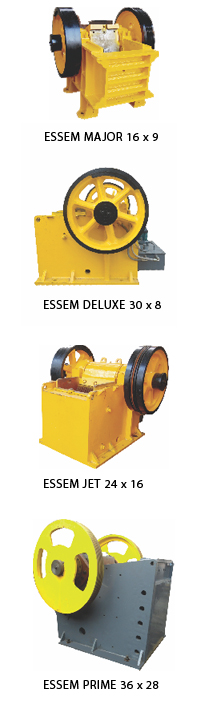

| JC 204 Essem Major |
16 x 9 400 x 230 |
5-7 125-175 |
3/4 - 2 1/2 20-60 |
8-15 | 30 | 340 |
| JC 207 Essem Deluxe |
30 x 8 750 x 200 |
5-6 125-150 |
3/4 - 2 1/2 20-60 |
20-40 | 50 | 300 |
| JC 406 Essem Jet |
24 x 16 600 x 400 |
9-12 225-300 |
1 1/2 - 3 40-75 |
25-50 | 50 | 290 |
| JC 609 Essem Prime S |
36 x 24 900 x 600 |
16-20 400-500 |
4 - 6 100-150 |
75-150 | 100 | 275 |
| JC 709 Essem Prime |
36 x 28 900 x 700 |
18-23 450-575 |
5 - 8 125-200 |
85-200 | 100 | 275 |
| JC 811 Essem P Super |
44 x 33 1100 x 840 |
21-28 525-700 |
6-9 150-225 |
150-350 | 150 | 245 |
The above figures are for guidance only. The output may vary according to the nature and size of raw materials, feeding arrangements. The bulk density of stones is 1600kg/m3.Specifications & Features are subject to change without notice.Photographs and drawings illustrate purpose only and may vary from products.
